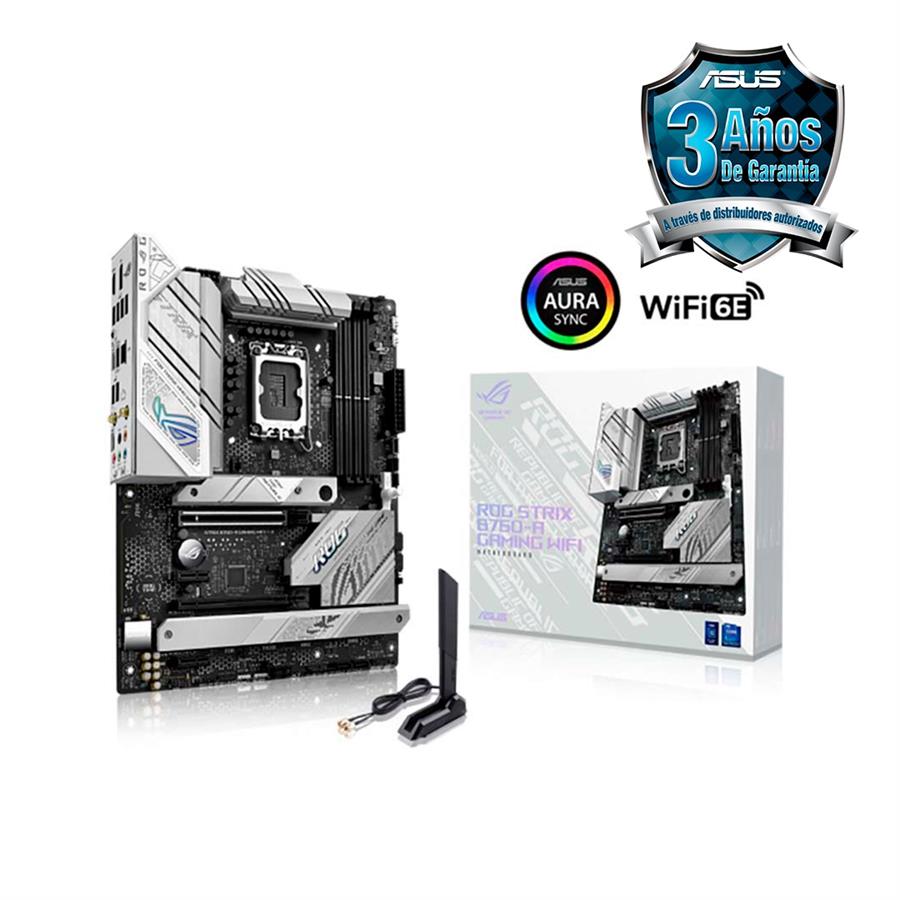

Completa tu configuración blanca con el abundante conjunto de características del ROG Strix B760-A, que incluye PCIe 5.0, WiFi 6E, USB 3.2 Gen 2x2, DDR5 y más.
- Socket Intel® LGA 1700: Listo para procesadores Intel® Core™ de 13.ª generación e Intel® Core™, Pentium® Gold y Celeron® de 12.ª generación.
- Solución de alimentación robusta: 12+1+1 fases de poder, conectores de alimentación ProCool, bobinas de choque de aleación de alta calidad y condensadores duraderos se aprovechan para admitir los últimos procesadores multinúcleo.
- Térmicas de VRM optimizadas: Disipadores de calor gruesos unidos al VRM con almohadillas térmicas de alta conductividad, y el más grande integrado con la cubierta de E/S para un área de superficie adicional.
- Amplia compatibilidad con M.2: Tres puertos PCIe 4.0 M.2, todos con disipadores térmicos para mantener temperaturas óptimas y lograr la máxima velocidad de transferencia de datos.
- Redes de alto rendimiento: Intel Wi-Fi 6E (802.11ax) integrado e Intel 2.5G Ethernet con ASUS LANGuard.
- Abundante conectividad: USB 3.2 Gen 2x2 Type-C® puerto de E/S posterior, ocho puertos USB adicionales, puerto para panel frontal USB 3.2 Gen 2, PCIe 5.0 x16 SafeSlot, HDMI® 2.1 y DisplayPort™4.
- Control inteligente: AI Networking exclusivo de ASUS y cancelación de ruido AI bidireccional para simplificar la configuración y mejorar el rendimiento.
- Diseño de fácil montaje: PCIe Slot Q-Release, M.2 Q-Latch, botón BIOS FlashBack™ y Q-LED.
- Audio para juegos líder en la industria: ALC4080 con amplificador Savitech SV3H712, junto con DTS® Sound Unbound™ y Sonic Studio III.
- Software de renombre: Paquete de suscripción de prueba AIDA64 Extreme de 60 días y panel intuitivo UEFI BIOS con MemTest86 integrado.
CPU:
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Memory:
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics:
1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots:
Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Storage:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet:
1 x Intel® 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6E :
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
USB:
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Back Panel I/O Ports:
1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Miscellaneous:
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Special Features:
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
